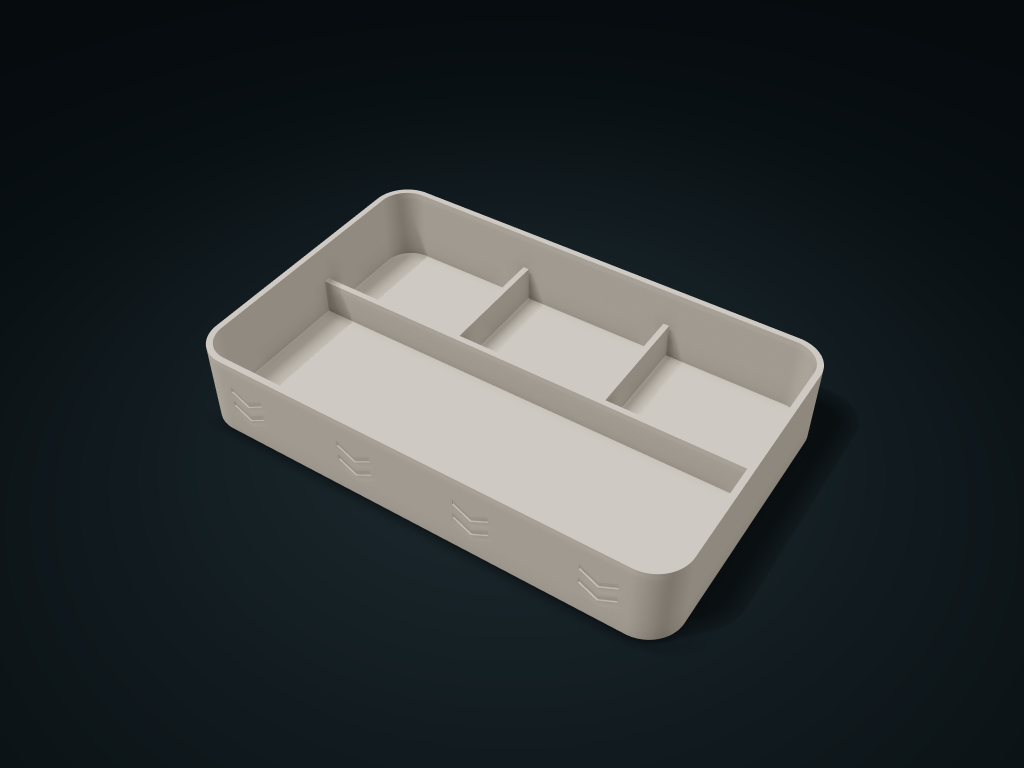

A rounded solid-wall tray has separated paired-chevron recesses, a main bay for long items and small side compartments. The motifs do not pass through the wall.
Conservative Straight Clear Length of Main Bay
188.0 mm
Conservative Straight Clear Width of Main Bay
60.3 mm
Usable Interior Depth
35.2 mm
Conservative Clear Length of Side Compartments
53.6 mm
Conservative Clear Width of Side Compartments
39.3 mm
Default solid volume
About 168 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats
Long-and-Small Item Tray Body
220 × 140 × 38 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.1 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Overall outer length
195–255 mm
Overall outer width
120–170 mm
Overall Maximum Height
34–52 mm
Interior layout
Long Item Bay Width Share
45–68 %
Side Compartment Count
2–4
Divider top height
15–28 mm
Model parameters
Outer Corner Radius
12–22 mm
Pattern scale
6–10 mm
Shallow Motif Recess Depth
0.5–0.9 mm
Construction details
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
Insert items from above. Key dimensions describe conservative straight-through clearance; rounded corners, dividers and shaped ends also occupy space. Allow handling clearance for the widest part of each item.
One printed part with no assembly hardware. Slice with the complete base down and check motif overhangs and supports.
The shallow motifs do not pass through the wall; at least 1.5 mm of solid wall remains behind them. Access small items from above.
All custom parts are included in the download; no purchased parts are required. Preview colors are for display only; manufacturing STL/STEP files are uncolored.
Slicing and physical test printing have not been performed. Check overhangs, supports and fit before printing; support-free printing, load capacity, sealing and food-contact safety are not promised.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
