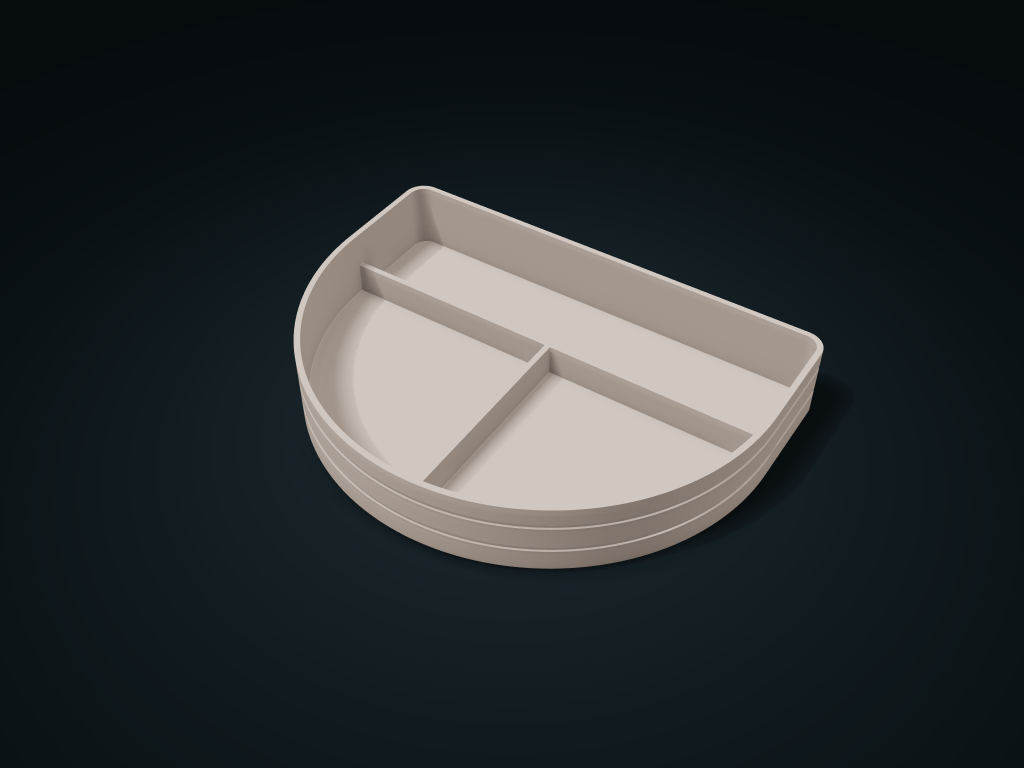

Two continuous shallow horizontal bands follow the D-shaped rear corners and front arc without penetrating the inner wall. The flat-back rounded-front outline and shared-wall interior are independently designed for this use.
Conservative Rear Long-Pocket Clear Length
145.8 mm
Rear Long-Pocket Clear Width
38.0 mm
Conservative Front Pocket Clear Length
71.5 mm
Conservative Front Pocket Clear Width
74.3 mm
Usable Depth Below the Lowest Rim
32.2 mm
Front Pocket Count
2 compartments
Rear Long-Pocket Count
1 compartment
Shared Divider Top
18.0 mm
Nominal Wall at the Deepest Recess
1.8 mm
Default solid volume
About 157 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats
Banded Flat-Back Valet Tray Body
220 × 165 × 35 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Overall outer length
180–250 mm
Overall outer width
125–185 mm
Maximum Outer Height
25–55 mm
Interior layout
Front Compartment Columns
1–3
Rear Long-Pocket Clear Width
20–55 mm
Divider top height
12–42 mm
Model parameters
Rear Corner Radius
8–16 mm
Vertical Width of Horizontal Bands
2–4 mm
Construction details
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
The complete body is one printed part. The rear long pocket shares a wall with the front pockets; changing the front pocket count does not divide the rear pocket.
Clearance describes conservative rectangular regions; spare curved space is excluded. Load and remove items from above, leaving additional handling room around their widest outline.
Print with the flat base down. There is no lid, latch or wall-mounting hardware. Compartment capacity depends on the chosen configuration; physical use has not been tested.
The exterior recesses are nominally 1 mm deep, leaving base wall thickness minus 1 mm at the thinnest point; these grooves are not through-holes.
All custom parts are included in the download; no purchased parts are required. Preview colors are for display only; manufacturing STL/STEP files are uncolored.
Slicing and physical test printing have not been performed. Check overhangs, supports and fit before printing; support-free printing, load capacity, sealing and food-contact safety are not promised.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
