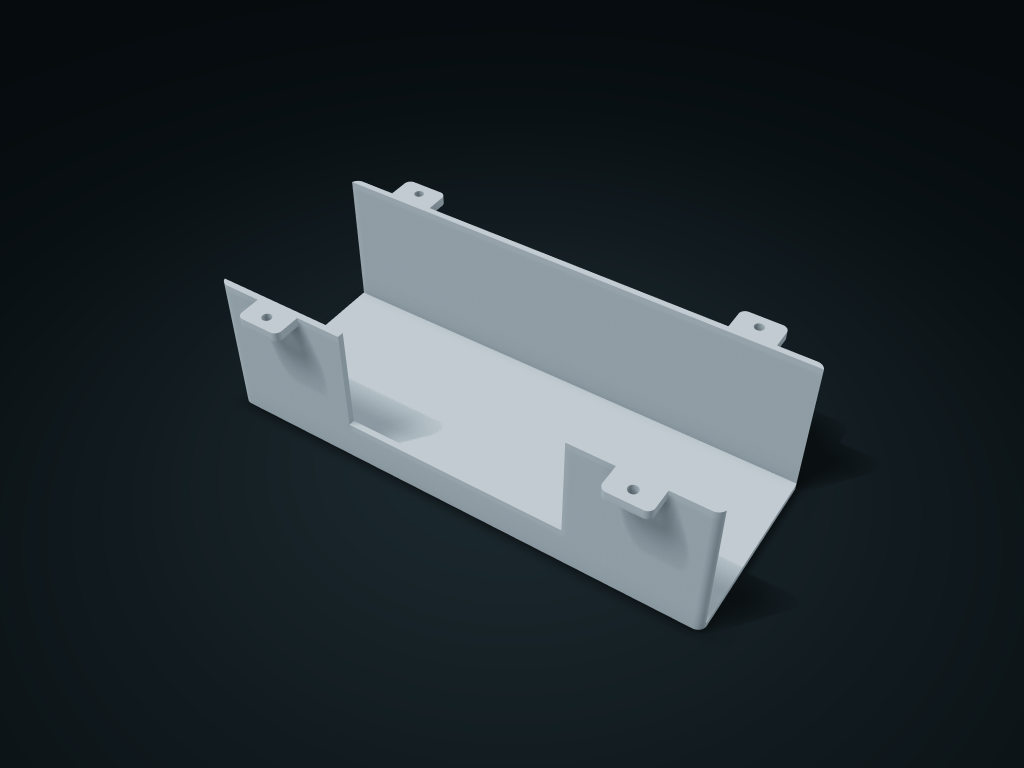

Side-Access Under-Desk Cable Trough model preview, default size 220 × 110 × 65 mm, 1 part
1 partSTL + STEPMillimetersVersion 1.0.0
01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Configure from measured space; parts and usable dimensions are regenerated from the parameters.

Cable Channel Clear Width
80.4 mm
Longitudinal Mounting Hole Pitch
160.0 mm
Side Access Opening Width
100.0 mm
Default solid volume
About 119 cm³ (check in your slicer)

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
PartsOuter sizeFile formats
Open-Service Cable Trough220 × 110 × 65 mmSTL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size
Trough Overall Length
140–245 mm
Overall Width Including Mounting Flanges
85–160 mm
Overall Drop below Mounting Surface
45–90 mm
Functional configuration
Side Access Opening Width
55–145 mm
Access Opening Retaining Lip Height
12–25 mm
Longitudinal Mounting Hole Pitch
85–200 mm
Construction details
Base wall and floor thickness
2.4–3.4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

01

Adjust size

Sign in to open this model in the studio.

02

Preview

Adjusting and 3D preview are free.

03

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

  1. Four 3.5 × 16 mm cross-recess pan-head chipboard screws, head diameter at most 7 mm. For drillable wooden desktops at least 20 mm thick; check the substrate and pilot holes first.
  2. The printed kit contains one trough. Mounting flanges are 4 mm thick, giving a nominal 12 mm wood penetration for 16 mm screws. Screws are not included as STL/STEP parts.
  3. Hold all four flange tops against the desk underside, mark the holes and drive screws from below. Support the trough before undoing the screws.
  4. Feed complete plugs through the open ends and access cable bundles through the side opening. For light USB and data cables, not as a load-bearing power-strip or power-supply mount.
  5. Slice with the flat base down and check supports for the mounting-flange overhangs. Desktop fixing strength has not been validated.
  6. Software dimension and assembly checks are not physical validation. Slicing and test printing have not been performed. Preview colors are not included in STL/STEP.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
