Inspired by the general appearance of rounded polygon containers, with independently constructed parallel-offset pentagonal walls, a matching locating ring and column dividers. Distinct from the existing hexagonal radial and petal outlines.
Actual Filleted Outer Width
192.0 mm
Conservative Straight Clear Length per Compartment
56.4 mm
Conservative Straight Clear Width per Compartment
115.5 mm
Usable Interior Depth
65.4 mm
Compartment Count
2 compartments
Actual Divider Height
30.0 mm; no divider for one compartment
Locating Ring Insertion Depth
4 mm
Ring clearance per side
0.45 mm
Default solid volume
About 297 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats
Rounded-Pentagon Compartment Body
200 × 192 × 72.2 mm
STL · STEP
Matching Pentagon Locating-Ring Lid
200 × 192 × 11.8 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Filleted Overall Outer Length
160–245 mm
Overall Height Including Lid and Grip
65–115 mm
Interior layout
Compartment columns
1–3
Divider top height
15–48 mm
Model parameters
Pentagon Corner Radius
12–24 mm
Construction details
Ring clearance per side
0.3–0.7 mm
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.

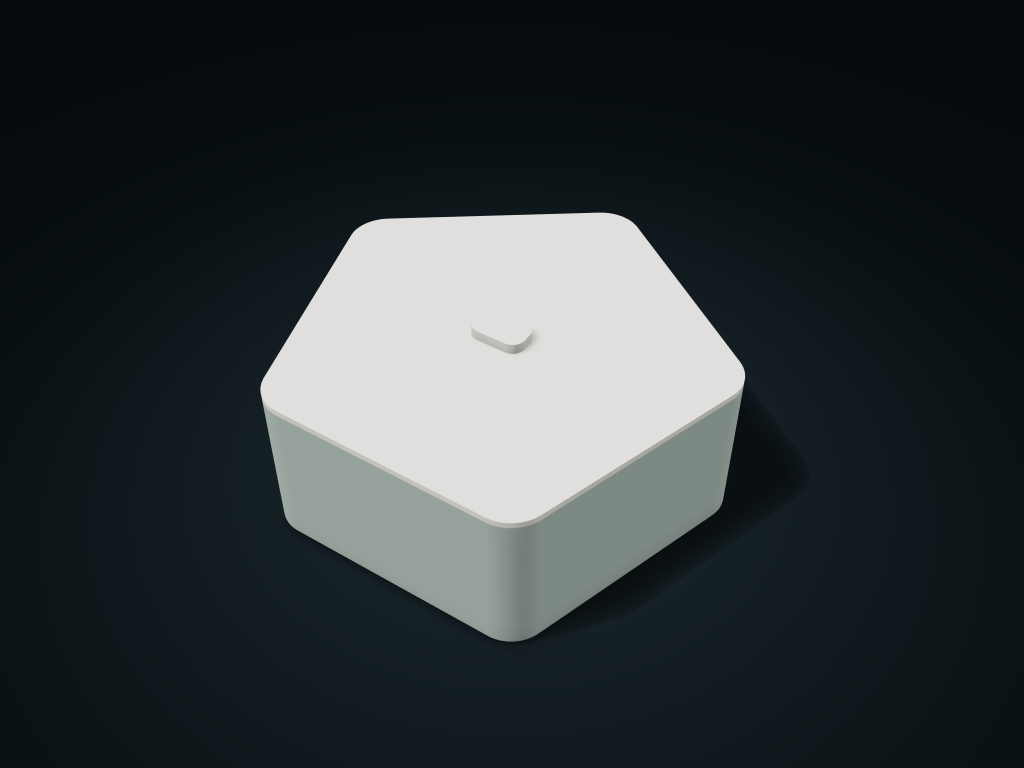

The kit includes a rounded-pentagon body and matching lift-off lid. The locating ring inserts vertically by 4 mm, the lid plate rests on the rim, and the rounded grip lifts it off.
The ring leaves 0.45 mm nominal clearance per side at the straight walls and all five rounded corners. Test the fit on your printer; it does not lock or seal.
Outer length is the actual maximum length after rounding. Outer width is calculated from the regular pentagon and corner radius. Spare corner areas are excluded from the conservative rectangular compartment clearances.
One compartment has no divider; two or three compartments share divider walls. Remove items from above and leave extra handling space around their widest outline.
Slice the body with its complete flat base down. Separately check the orientation, overhangs and supports of the lid ring and grip. Intended for small countertop belongings, with no wall mounting or fixing structure.
All custom parts are included in the download; no purchased parts are required. Preview colors are for display only; manufacturing STL/STEP files are uncolored.
Slicing and physical test printing have not been performed. Check overhangs, supports and fit before printing; support-free printing, load capacity, sealing and food-contact safety are not promised.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
