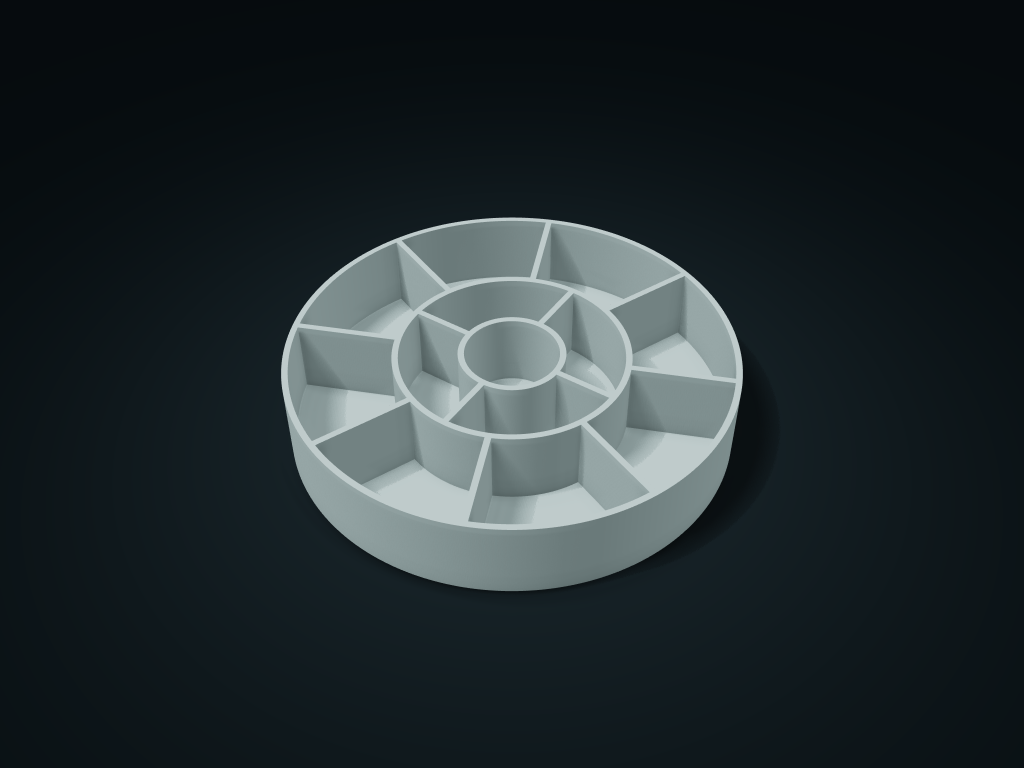

Inner and outer radial dividers are staggered. The center remains a usable pocket, with continuous floors and shared walls.
Center Pocket Clear Diameter
42.0 mm
Outer Ring Radial Clearance
44.6 mm
Inner and Outer Ring Pocket Counts
4 / 8 compartments
Default solid volume
About 240 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats
Staggered Double Ring Tray
200 × 200 × 38 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Overall outer diameter
170–245 mm
Overall outer height
28–55 mm
Interior layout
Center Pocket Clear Diameter
32–58 mm
Inner Ring Radial Clearance
22–34 mm
Inner Ring Pocket Count
3–6
Outer Ring Pocket Count
6–10
Construction details
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
One-piece body with its base printed down; interior dividers connect to the floor and require no separate assembly.
Load and remove items from above. Measure the widest item envelope and leave handling clearance; corners, dividers and curved walls occupy interior space.
Ring pockets are sectors, not rectangles. Radial clearance is not the diameter of an item they can hold; account for sector angle and divider thickness.
All custom parts are included in the download; no purchased parts are required. Preview colors are for display only; manufacturing STL/STEP files are uncolored.
Slicing and physical test printing have not been performed. Check overhangs, supports and fit before printing; support-free printing, load capacity, sealing and food-contact safety are not promised.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
