Items must pass through the narrower top before reaching the floor; the base clearance does not replace the opening clearance.
01 / SPECIFICATIONS
Specifications
See the default structure and usable space.

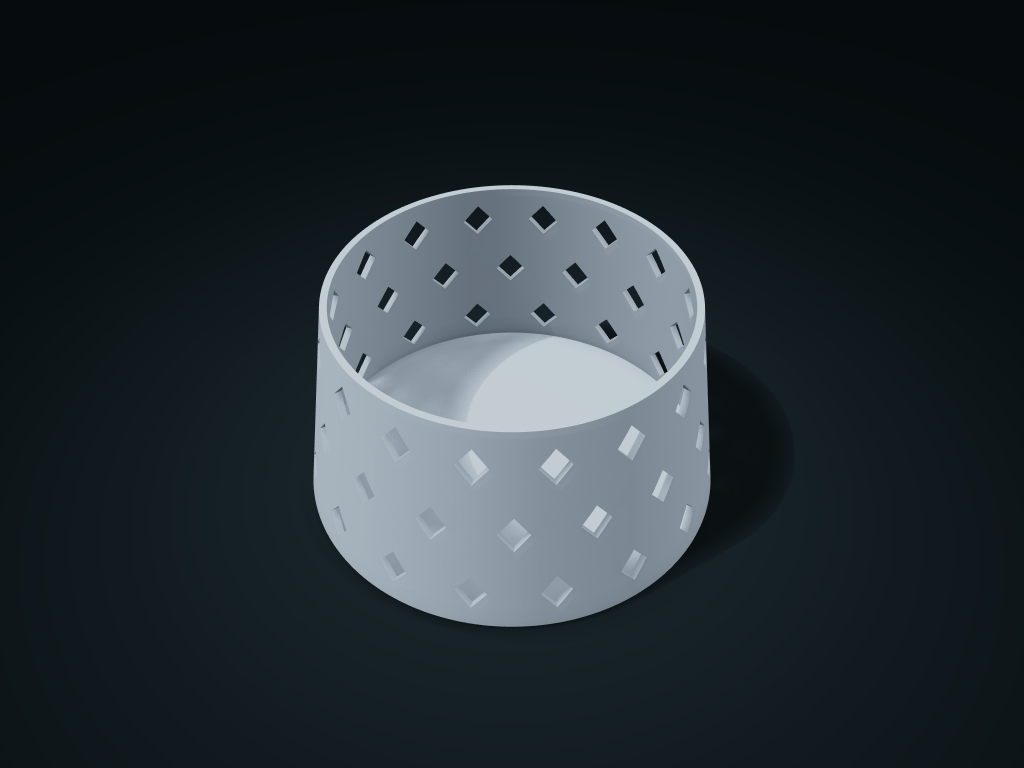

A tapered conical surface carries staggered diamond windows. Wall thickness is corrected normal to the slope, with a continuous floor and rim.
Minimum Top Opening Diameter
134.4 mm
Interior Diameter at Floor
157.6 mm
Number of inner compartments
1 compartment
Default solid volume
About 161 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats
Tapered Diamond Window Basket
164 × 164 × 90 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Maximum Base Diameter
140–205 mm
Overall outer height
76–120 mm
Interior layout
Interior layout
Open cavity / Two compartments / Four compartments
Divider top height
28–60 mm
Model parameters
Taper Inset per Side
8–17 mm
Diamond Window Half Width
4.5–7.5 mm
Construction details
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
One-piece body with its base printed down; interior dividers connect to the floor and require no separate assembly.
Load and remove items from above. Measure the widest item envelope and leave handling clearance; corners, dividers and curved walls occupy interior space.
Windows provide appearance and visibility. Use an inner bag for items smaller than the openings; do not hold liquids or unpackaged food directly.
Items must pass through the narrower top before reaching the floor; the base clearance does not replace the opening clearance.
All custom parts are included in the download; no purchased parts are required. Preview colors are for display only; manufacturing STL/STEP files are uncolored.
Slicing and physical test printing have not been performed. Check overhangs, supports and fit before printing; support-free printing, load capacity, sealing and food-contact safety are not promised.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
