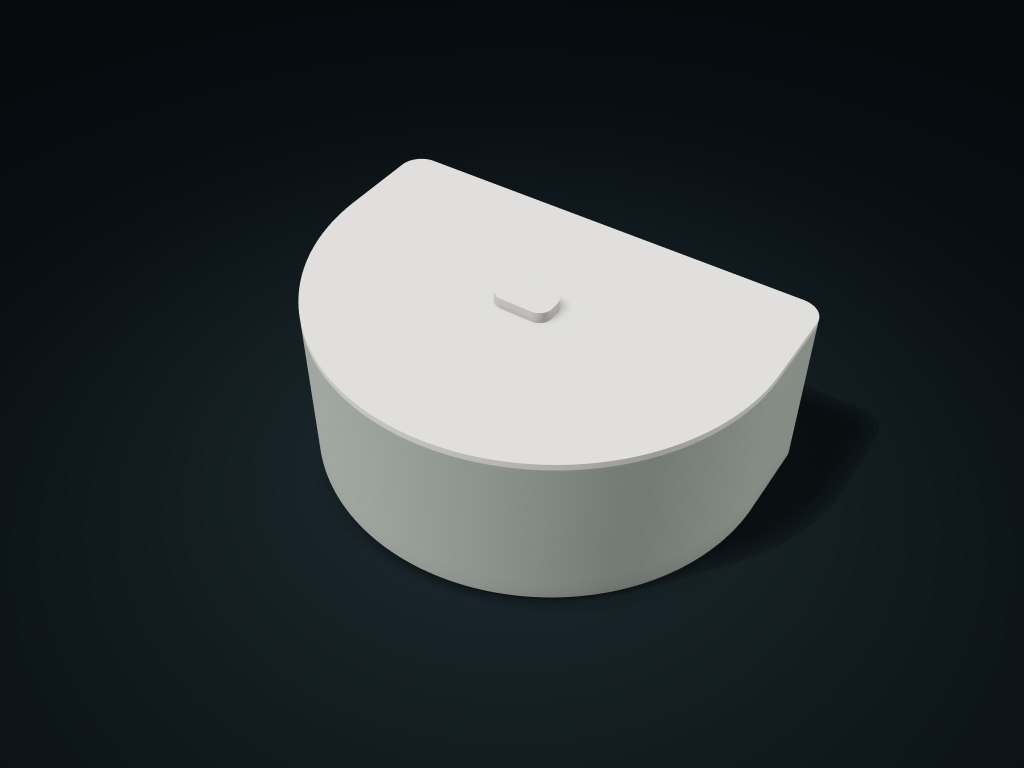

The independently modeled D-shaped outline combines a rounded front, flat back and rounded rear corners. The flat back suits edge placement, the front arc softens the appearance, and adjacent compartments share walls.
Conservative Straight Clear Length per Compartment
64.7 mm
Conservative Straight Clear Width per Compartment
98.3 mm
Usable Interior Depth
65.4 mm
Compartment Count
2 compartments
Actual Divider Height
30.0 mm; no divider for one compartment
Locating Ring Insertion Depth
4 mm
Ring clearance per side
0.45 mm
Default solid volume
About 271 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats
Flat-Back Rounded-Front Compartment Body
200 × 145 × 72.2 mm
STL · STEP
Matching Locating Ring Lid
200 × 145 × 11.8 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Overall outer length
180–250 mm
Overall outer width
125–185 mm
Overall Height Including Lid and Grip
65–115 mm
Interior layout
Compartment columns
1–3
Divider top height
15–48 mm
Model parameters
Rear Corner Radius
8–16 mm
Construction details
Ring clearance per side
0.3–0.7 mm
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
The kit contains a body and a lift-off lid. All custom parts are included; no purchased hardware is required. The locating ring inserts vertically by 4 mm and the lid rests on the rim. Lift the rounded grip to remove it.
Nominal clearance per side along the straight walls and front arc is 0.45 mm. Test the fit on your printer. This lid does not lock or seal.
Clearance is calculated for a conservative rectangular area inside each compartment; spare space in the front arc is excluded. Insert and remove items from above, allowing additional handling space around their widest outline.
The flat back is for placement along a countertop edge, not wall mounting. Slice the body with its complete base down; separately check print orientation, overhangs and supports for the lid ring and grip.
All custom parts are included in the download; no purchased parts are required. Preview colors are for display only; manufacturing STL/STEP files are uncolored.
Slicing and physical test printing have not been performed. Check overhangs, supports and fit before printing; support-free printing, load capacity, sealing and food-contact safety are not promised.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
