Moonlit Cat Keepsake Jar | Free 3D Print STL & STEP

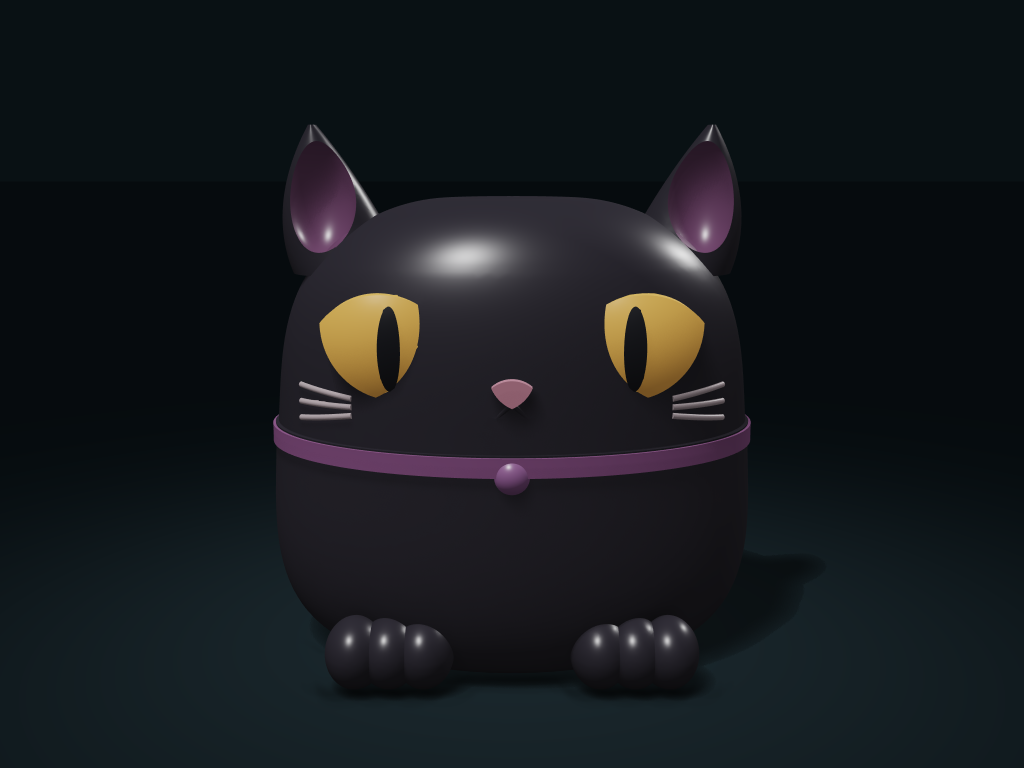

Moonlit Cat Keepsake Jar model preview, default size 155 × 117.2 × 165 mm, 2 parts

2 partsSTL + STEPMillimetersVersion 1.0.1

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Ears, almond eyes and short paws form a continuous sculpted shell. Compartments and the lid pilot resize together, making a useful desk jar beyond Halloween.

Clear opening depth at center: 106.1 mm

Compartment clear width at centerline: 71.5 mm; curved sides narrow toward both ends

Conservative usable access height: 60.6 mm

Default solid volume: About 463 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Cat compartment body	155 × 117.2 × 71.8 mm	STL · STEP
Cat face lid with upright ears	151.3 × 115 × 98.2 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.1 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Overall cat body width: 125–200 mm
Overall height including ears: 145–220 mm

Interior layout

Side-by-side compartments: 1–3

Construction details

Lid pilot clearance per side: 0.3–0.75 mm
Base wall and floor thickness: 3–4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

2 printed parts: cat body and cat face lid, with no purchased parts.
Lift the lid vertically; the locating ring engages by 5 mm, with 0.45 mm clearance per side.
The eyeballs, ears, nose, whiskers, collar and paws have real sculpted volume; preview colors do not change the manufacturing geometry.
For individually wrapped sweets and small desk items only; not a sealed container, toy or food-contact product.
STL/STEP files are uncolored; check slicing, supports and physical fit before use.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
