Spiderweb Ring Tray | Free 3D Print STL & STEP

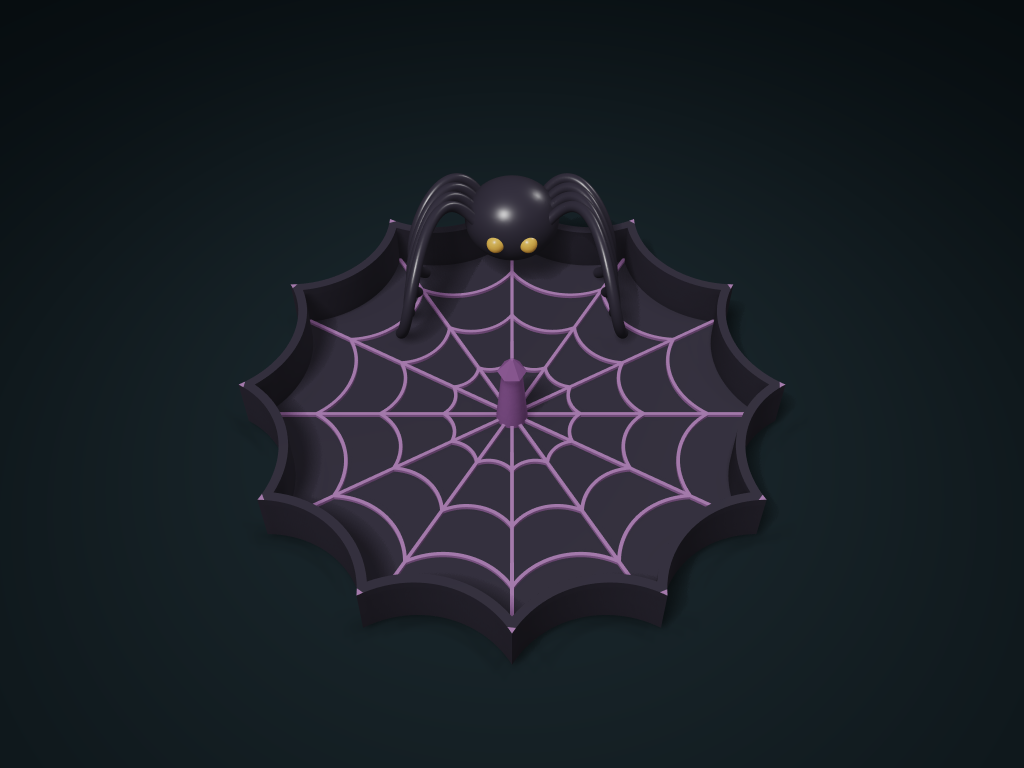

Spiderweb Ring Tray model preview, default size 180 × 180 × 40.6 mm, 1 part

1 partSTL + STEPMillimetersVersion 1.0.1

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

The twelve-lobed outline and connected raised lines form a web on a solid floor; the spider stays at the rear, and the central ring post can be enabled or disabled.

Conservative clear tray-floor width: 148.8 mm

Rim height above web relief: 15.8 mm

Ring post height: 30.0 mm

Default solid volume: About 119 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Spiderweb and spider ring tray	180 × 180 × 40.6 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.1 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Maximum tray diameter: 150–220 mm
Rim height: 16–28 mm

Functional configuration

Ring post height: 22–45 mm
Ring post: 0–1

Model parameters

Web relief height: 0.8–1.8 mm

Construction details

Base wall and floor thickness: 2.5–4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

1 complete printed part: spider, eight curved legs and web relief are integral with the tray, with no purchased parts.
The tray floor is continuously closed, and the web is raised relief; small jewelry cannot fall through the web.
The ring post can be enabled or disabled, with configurable height; when enabled, it prints as part of the tray floor.
Outside diameter refers to the tray outline; use the generated dimensions for the full bounds including the spider and curved legs.
Preview colors are for display only, and STL/STEP files are uncolored; check supports beneath the curved legs. Slicing and physical printing are unverified.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
