Wax-Draped Potion Keepsake Jar | Free 3D Print STL & STEP

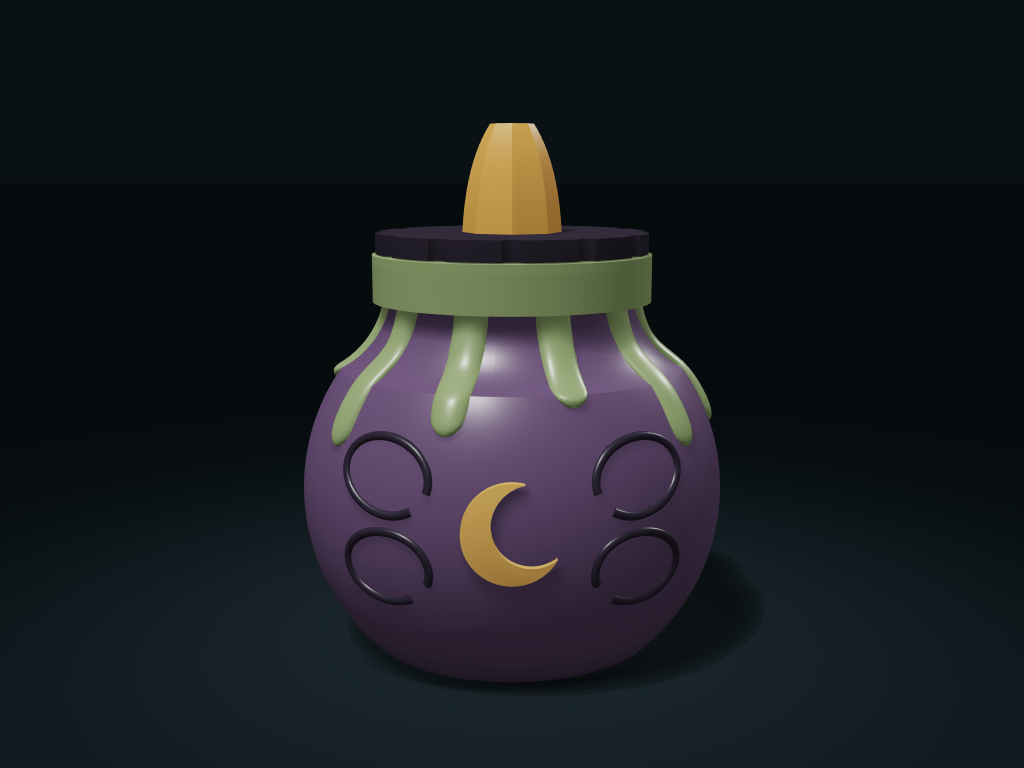

Wax-Draped Potion Keepsake Jar model preview, default size 147.5 × 150 × 180 mm, 2 parts

2 partsSTL + STEPMillimetersVersion 1.0.1

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

The rounded belly, green wax drips, moon medallion, scrolls and amber octagonal stopper retain their shape; decorations join the jar continuously.

Clear opening diameter at center: 80.0 mm

Compartments below opening: 1 compartments; divider ends 12 mm below opening

Clear center height inside jar: 132.7 mm

Default solid volume: About 700 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Jar body with wax-drip relief	147.5 × 150 × 135.9 mm	STL · STEP
Petal lid with octagonal knob	94.2 × 94.2 × 50.1 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.1 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Maximum outside diameter including relief: 130–185 mm
Overall height including stopper: 160–220 mm

Interior layout

Side-by-side jar compartments: 1–2

Construction details

Stopper clearance per side: 0.3–0.75 mm
Base wall and floor thickness: 3–4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

2 printed parts: jar body and integral stopper lid, with no purchased parts.
The stopper inserts vertically by 6 mm, with 0.45 mm clearance per side; both parts adjust with the dimensions.
Wax drips, scrolls, crescent and petal lid are real raised shapes; preview colors do not change manufacturing geometry.
For hair ties, coins and packaged small items; not for liquids, sealing or food contact.
STL/STEP files are uncolored; slicing and physical fit have not been verified.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
