Stepped-Stop Tray for Mixed-Length Drill Bits | Free 3D Print STL & STEP

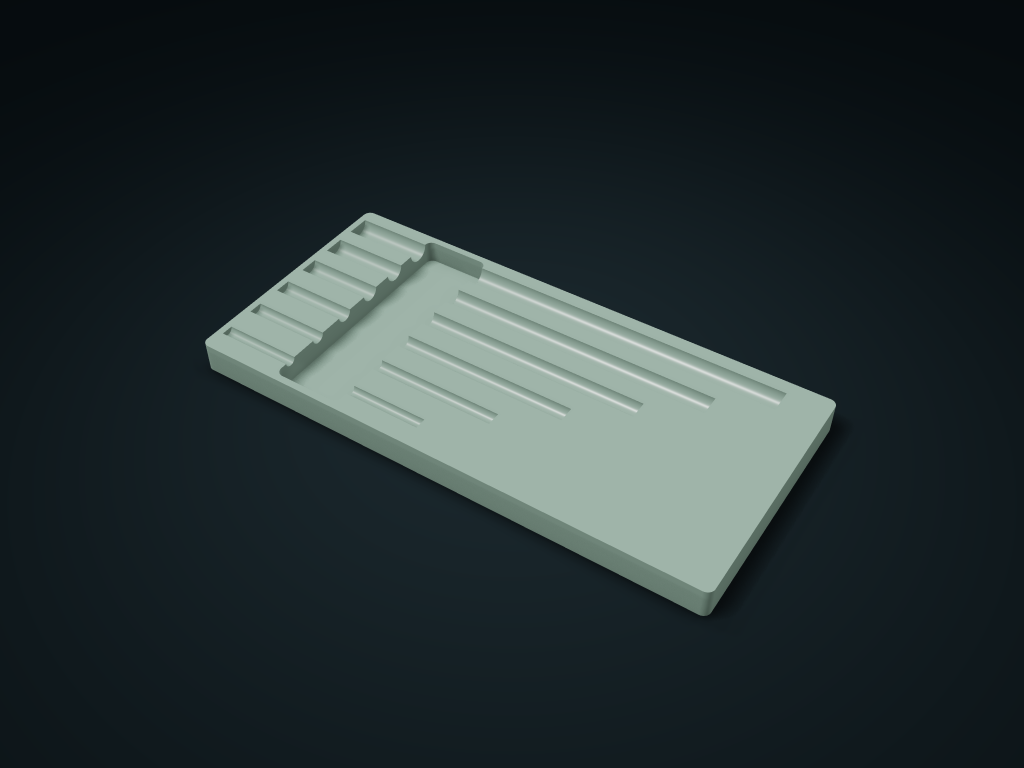

Stepped-Stop Tray for Mixed-Length Drill Bits model preview, default size 210 × 100 × 12 mm, 1 part

1 partSTL + STEPMillimetersVersion 1.0.1

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Measure full tool length and maximum diameter before configuring; check each position against the dimension list.

First to Last Channel Clear Length: 90–190 mm

First to Last Tool Diameter: 4–9 mm

Maximum Height with Round Bits: 16.2 mm

Finger Recess Clear Width: 28 mm

Default solid volume: About 212 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Long-Bit Finger-Recess Tray	210 × 100 × 12 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.1 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Overall outer length: 150–260 mm
Overall outer width: 75–160 mm
Tray outer height: 10–20 mm

Interior layout

Horizontal Channels: 3–9

Functional configuration

First Tool Diameter: 2–10 mm
Diameter Increment per Channel: 0–2 mm
Central Finger Recess Width: 20–40 mm
First Channel Clear Length: 50–140 mm
Length Increment per Channel: 0–25 mm

Construction details

Hole Diameter Allowance: 0.3–1 mm
Base Wall Thickness: 2.4–3.6 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

One-piece tray; print with the flat base down. No pins, lid or purchased parts.
Lay tools from the shared start, against individual end stops. First-channel length and increment determine each usable length. The finger recess follows the first channel; diameter allowance is diametral.
Tray height excludes tools. Check drawer clearance against the loaded height. Open channels do not lock tools and are not suitable for inverted transport.
Software checks cover the declared samples and functional variations. Slicing, test printing and load testing have not been performed. Preview colors are not included in STL/STEP.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
