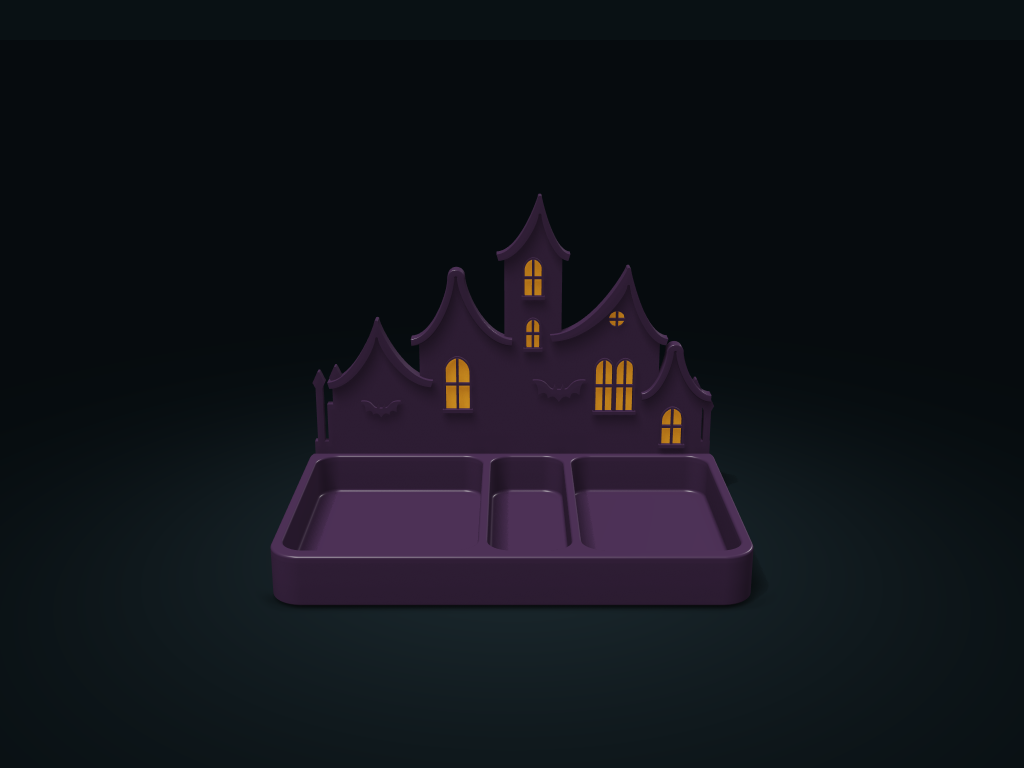

Gothic Haunted House Organizer Tray

Preserves the curved eaves, arched windows and bat details, with independently adjustable tray compartments, clearances and removable backboard fit.

—

Assembly display size218 × 140 × 164 mm

Covers the layout of all parts in the current preview; see Files and dimensions for each part's print size.

Complete kit: 9 parts · STL, STEP and size list

STL or STEP? See the difference

Download full kit free

Need it to fit your space?

Adjust this model in the studio and preview it free.

Outer length, Outer width, Overall height including roofTray compartment countMain compartment share in three-bay layout

Adjust size and layout

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Preserves the supplied native curved eaves, window frames, bat details and window inserts, with a rebuilt configurable rounded tray. The backboard and windows scale with the outer size; use the matching backboard tabs and tray slots from the same generation.

Current compartment count: 3

Nominal width of each compartment: 88.4 / 38.2 / 72.3 mm

Clear front-to-back cavity depth: 119.0 mm

Compartment floor thickness: 3.2 mm

Backboard tab clearance per side: 0.25 mm

Interior description: Rounded corners occupy space; the stated width and depth do not guarantee that a rectangular item of those dimensions will fit.

Default solid volume: About 327 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Rounded haunted house compartment tray	218 × 140 × 24 mm	STL · STEP
Sculpted haunted house backboard with curved eaves	214.8 × 8 × 155 mm	STL · STEP
Attic window insert	10 × 5 × 10 mm	STL · STEP
Arched window insert 1	14.6 × 5 × 30.6 mm	STL · STEP
Arched window insert 2	10.6 × 5 × 21.6 mm	STL · STEP
Arched window insert 3	8.6 × 5 × 17.6 mm	STL · STEP
Arched window insert 4	10.6 × 5 × 30.6 mm	STL · STEP
Arched window insert 5	10.6 × 5 × 30.6 mm	STL · STEP
Arched window insert 6	12.6 × 5 × 22.6 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Outer length: 190–245 mm
Outer width: 120–180 mm
Overall height including roof: 145–190 mm

Interior layout

Tray compartment count: 1–4
Main compartment share in three-bay layout: 0.35–0.55 ratio

Functional configuration

Tray outer height: 23–38 mm
Backboard tab clearance per side: 0.2–0.5 mm

Construction details

Tray side wall thickness: 3.5–6 mm
Compartment floor thickness: 2.6–4.5 mm
Divider thickness: 3–5 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

Nine printed parts: 1 tray, 1 haunted house backboard, 6 arched window inserts and 1 attic window insert.
Insert the 7 windows from behind the backboard, seat their flanges against the rear face, and secure them with a small amount of model adhesive compatible with the filament.
Then insert both backboard tabs downward into the tray's blind slots until their shoulders rest on the ledges. Lift the backboard vertically to remove it.
Print the tray base down. Arrange the backboard and windows separately and choose their orientation and supports from slicer results.
Colors are for preview only; STL files contain no colors. Slicing, physical assembly and children's toy safety have not been validated.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
