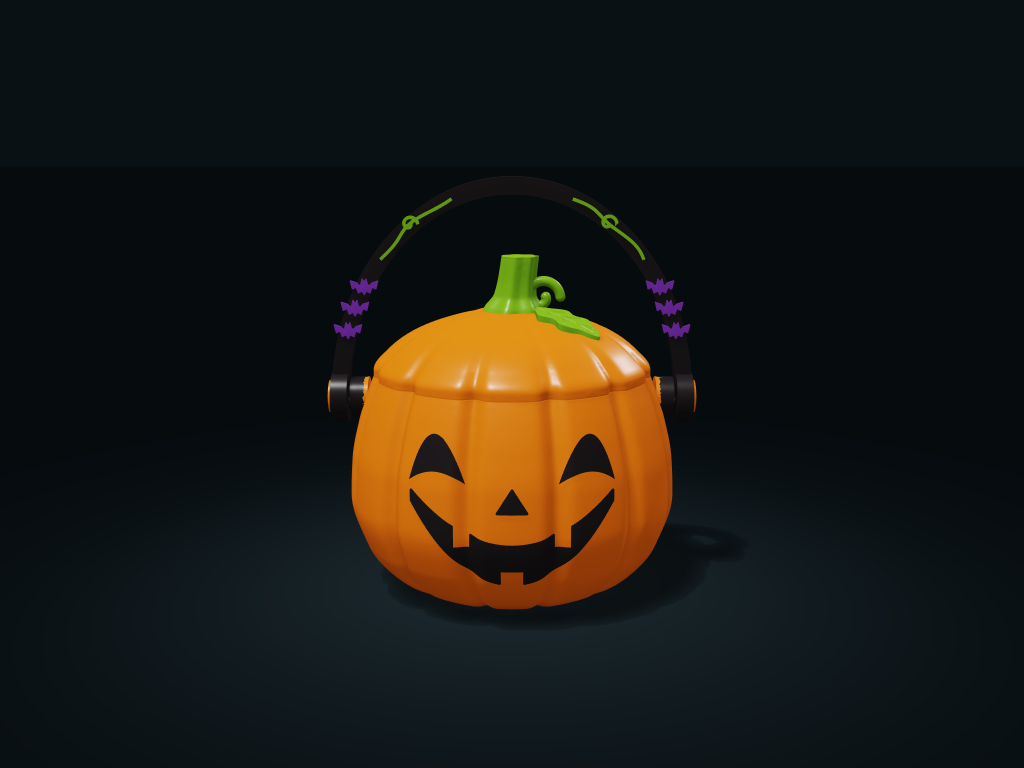

Vine-Leaf Pumpkin Carry Basket model preview, default size 191.4 × 170.4 × 215 mm, 5 parts
5 partsSTL + STEPMillimetersVersion 1.0.0

Insert each pin from outside through the handle into the body's blind socket. Apply a small amount of material-compatible model glue only to the pin tip; keep glue off the handle bearing surfaces.

Preserves the original twelve pumpkin grooves, smile, lid leaf, curled vines and six handle leaves. Leaf roots and vines form continuous integral joints. Both custom pins are included as printable parts; no missing custom hardware is required.

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Preserves the original twelve pumpkin grooves, smile, lid leaf, curled vines and six handle leaves. Leaf roots and vines form continuous integral joints. Both custom pins are included as printable parts; no missing custom hardware is required.

Minimum internal opening diameter
130.2 mm
Current compartment count
3
Lift-off lid single-side clearance
0.3 mm
Printed pin diameter
5.90 mm
Handle fold-down angle
0°
Default solid volume
About 330 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
PartsOuter sizeFile formats
Pumpkin compartment basket with vine leaves170 × 170.4 × 113 mmSTL · STEP
Pumpkin lid with carved leaf and curled vine144.1 × 144.1 × 66.4 mmSTL · STEP
Handle with vines and leaves188 × 26 × 127 mmSTL · STEP
Left printed pivot pin16.2 × 17 × 17 mmSTL · STEP
Right printed pivot pin16.2 × 17 × 17 mmSTL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size
Overall width including pivot pins
170–240 mm
Interior layout
Internal compartment count
1–4
Divider usable height ratio
40–100 %
Functional configuration
Lift-off lid single-side clearance
0.25–0.6 mm
Handle fold-down angle
0–90 °
Lid locating skirt depth
3–6 mm
Construction details
Pumpkin sidewall thickness
2.8–4.4 mm
Compartment floor thickness
3–6 mm
Divider thickness
2.4–4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

01

Adjust size

Sign in to open this model in the studio.

02

Preview

Adjusting and 3D preview are free.

03

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

  1. Five printable parts: pumpkin basket, carved-leaf lid, vine handle, and left and right pivot pins. Both custom pins are included in the download.
  2. Overall width includes the outermost pivot pins; lid skirt, compartments and handle axis update with the selected dimensions.
  3. Insert each pin from outside through the handle into the body's blind socket. Apply a small amount of material-compatible model glue only to the pin tip; keep glue off the handle bearing surfaces.
  4. Extra material: a small amount of plastic model glue compatible with the selected PLA or PETG. Load capacity has not been validated; handle gently as a tabletop candy basket.
  5. Fold the handle down before lifting the lid vertically. One to four compartments hold individually wrapped sweets and small gifts; not intended for direct food contact.
  6. In the slicer, orient each pin with its end face on the build plate. Support the sculpted leaves, vines and handle according to their actual overhangs.
  7. Cover and preview preserve the orange pumpkin, black handle, green vines and purple leaves; STL downloads contain no colors.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
