For straight or gently tapered outer pots. Rim diameter alone cannot establish fit in a narrow-necked pot; measure the base and narrowest section first.
01 / SPECIFICATIONS
Specifications
See the default structure and usable space.
Configure from measured space; parts and usable dimensions are regenerated from the parameters.
Target Pot Opening Diameter
135.0 mm
Insertion Depth below Flange
112.2 mm
Liner Base Outer Diameter
109.0 mm
Liner Top Clear Diameter
127.4 mm
Default solid volume
About 166 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats

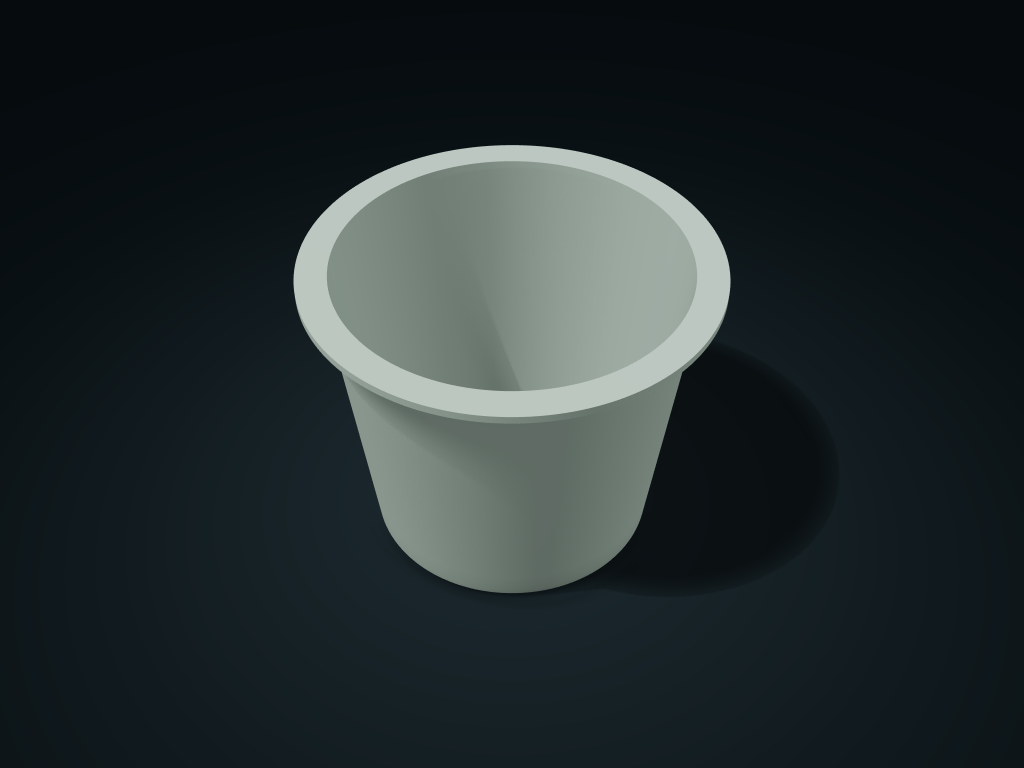

Flanged Tapered Drainage Liner
150 × 150 × 115 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Maximum Flange Diameter
110–210 mm
Overall Depth Including Flange
75–180 mm
Functional configuration
Outer Pot Opening Inner Diameter
90–195 mm
Base Taper per Side
5–22 mm
Base Drain Hole Diameter
3–8 mm
Construction details
Opening Clearance per Side
0.6–2 mm
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
One complete liner, with no custom shafts or fasteners. Supply your existing outer pot. The flange rests on its rim from above.
Every outer-pot cross section below the rim must clear the corresponding liner diameter with extra tolerance. The inner depth must exceed insertion depth by at least 10 mm.
For straight or gently tapered outer pots. Rim diameter alone cannot establish fit in a narrow-necked pot; measure the base and narrowest section first.
After watering, lift out the liner and empty the outer pot; this is a drainage liner without a wick or an automatic watering system.
Slice with the base down. The flange underside may require supports; inspect the seating surface after removal.
Software dimension and assembly checks are not physical validation. Slicing and test printing have not been performed. Preview colors are not included in STL/STEP.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
