Configure from measured space; parts and usable dimensions are regenerated from the parameters.
Pot Opening Inner Diameter
132.4 mm
Pot Base Inner Diameter
108.4 mm
Raised Drainage Gap
3 mm
Total Drain Holes
6 ring holes plus a central hole
Default solid volume
About 235 cm³ (check in your slicer)
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
Default model parts and outer dimensions
Parts
Outer size
File formats

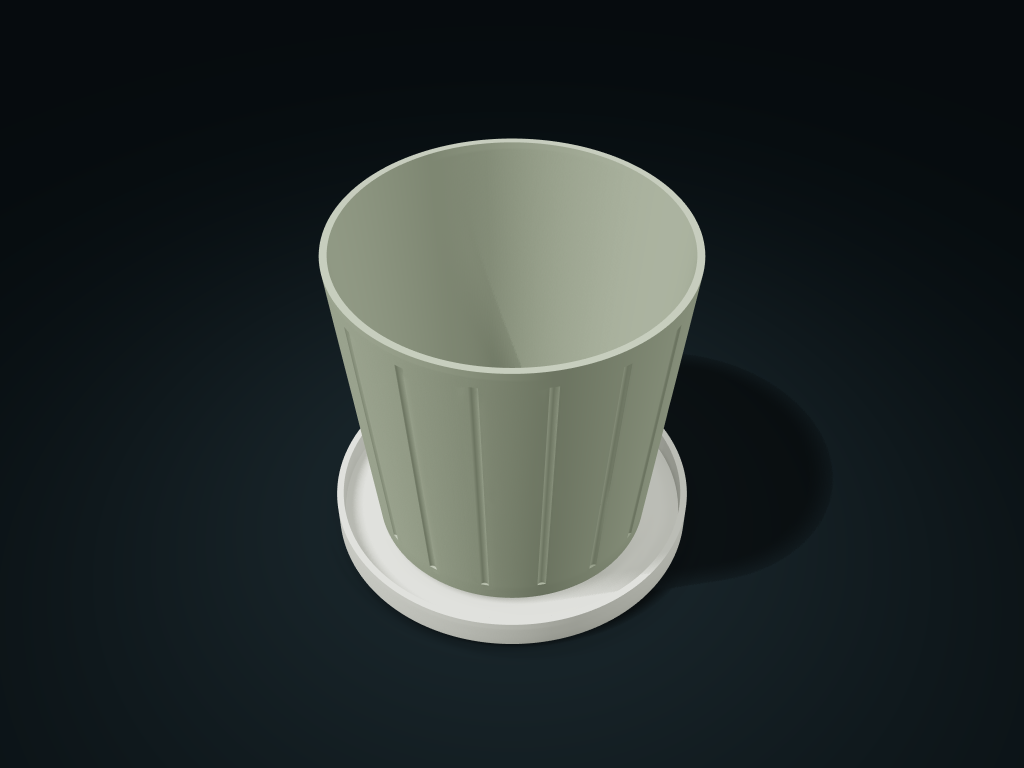

Tapered Draining Planter
138 × 138 × 134.2 mm
STL · STEP
Three-Pad Catch Saucer
150 × 150 × 12.8 mm
STL · STEP
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
Outer Diameter Including Saucer
110–210 mm
Overall Height Including Saucer
90–210 mm
Functional configuration
Bottom Drain Hole Diameter
3–8 mm
Drain Holes around Base
4–8
Saucer Rim Depth
7–16 mm
Model parameters
Pot Base Taper per Side
6–20 mm
Construction details
Base wall and floor thickness
2.4–3.4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
01
Adjust size
Sign in to open this model in the studio.
02
Preview
Adjusting and 3D preview are free.
03
Check export options
Confirm the files and available download options on the current page.
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
Both parts are included and need no purchased fittings. The pot rests on three saucer pads and lifts off vertically.
Empty the saucer promptly after catching drips. It is not a validated water reservoir; watertightness and growing performance are untested.
Slice the pot and saucer separately with bases down. Small growing-media particles may pass through the drains; choose the hole diameter to suit the medium.
Software dimension and assembly checks are not physical validation. Slicing and test printing have not been performed. Preview colors are not included in STL/STEP.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
