Three-Color Candy Corn Box | Free 3D Print STL & STEP

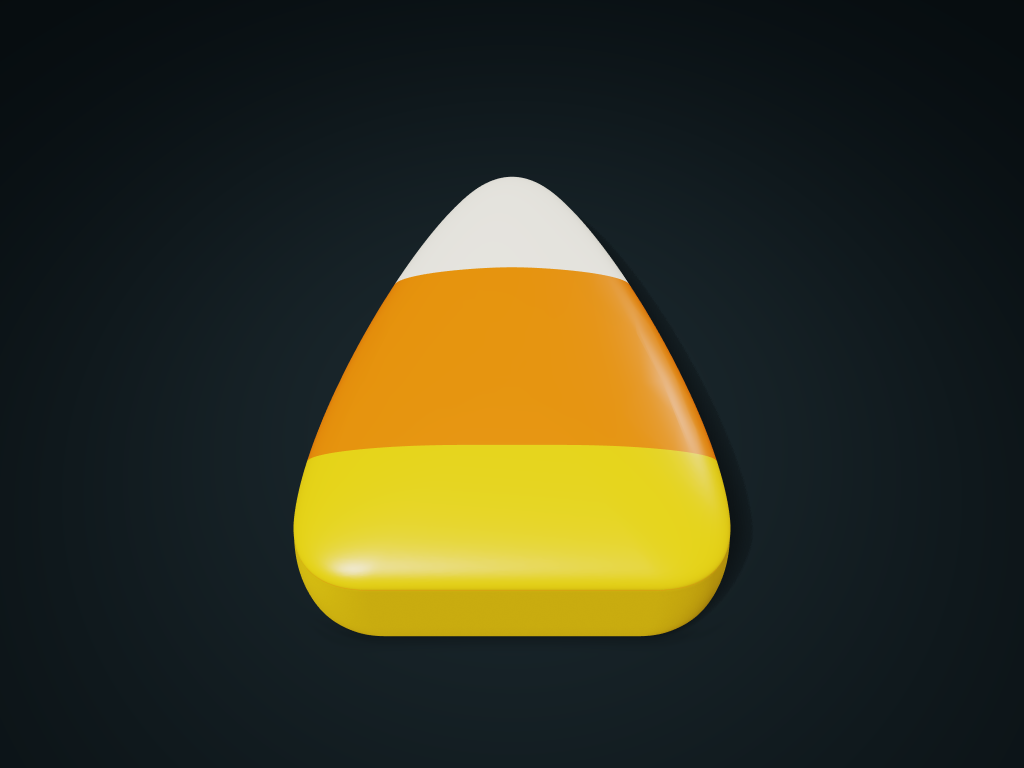

Three-Color Candy Corn Box model preview, default size 154 × 180 × 58.3 mm, 2 parts

2 partsSTL + STEPMillimetersVersion 1.0.0

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Rebuilt from the supplied native candy corn surfaces, retaining the rounded outline, domed top and yellow, orange and white palette. The cavity, floor, dividers and lid skirt are generated independently and remain coordinated when resized.

Current compartment count: 3

Compartment floor thickness: 3.4 mm

Divider height above the floor: 33.8 mm

Lift-off lid single-side clearance: 0.3 mm

Interior description: The cavity narrows with the candy corn outline. The tip is not rectangular usable space; check the largest item envelope.

Default solid volume: About 232 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Candy corn compartment body	154 × 180 × 44 mm	STL · STEP
Curved candy corn lift-off lid	150.2 × 180 × 17 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Outer length: 130–180 mm
Outer width: 155–220 mm
Overall height including curved lid: 52–80 mm

Interior layout

Internal compartment count: 1–3
Three-compartment junction position: 0.3–0.48 ratio
Divider height above the floor: 20–40 mm

Functional configuration

Lift-off lid single-side clearance: 0.25–0.65 mm
Lid locating skirt depth: 2.5–4.5 mm

Construction details

Cavity side wall thickness: 2.8–4.2 mm
Compartment floor thickness: 2.6–4.5 mm
Divider thickness: 2.4–3.6 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

Two manufactured parts: the compartment body and curved lift-off lid. No assembly hardware.
Lower the lid vertically. The locating skirt retains the configured per-side clearance from the inner wall; no latch or seal is promised.
Place the box with its base on the build plate. Set supports for the curved lid according to slicer results and print a test of the locating rim first.
The three-color preview preserves the original candy corn appearance. STL files contain no colors; use different filaments or apply paint afterward.
For small desk items or individually wrapped sweets. Check food-contact suitability, toy safety and physical fit before any such use.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
