Bat Wing Storage Box | Free 3D Print STL & STEP

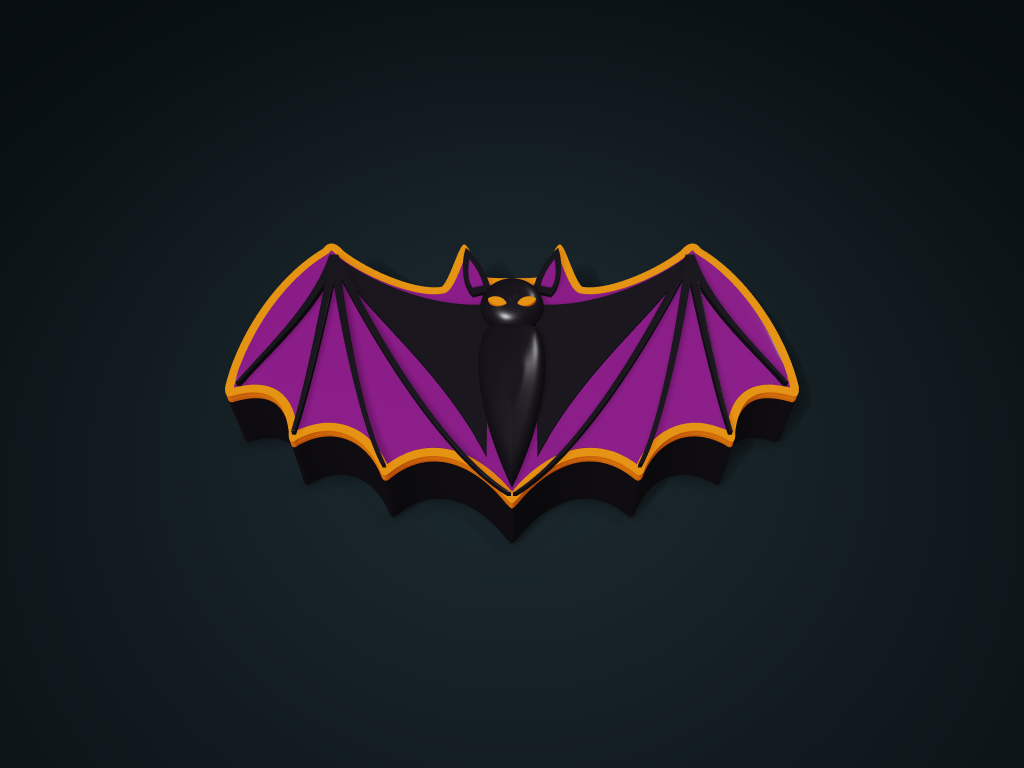

Bat Wing Storage Box model preview, default size 210 × 111.3 × 45.2 mm, 2 parts

2 partsSTL + STEPMillimetersVersion 1.0.0

01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Preserves the supplied bat outline, curved wing membranes, rounded raised veins, ears and eye details. The cavity, dividers and locating skirt are regenerated together so the body and lid remain coordinated when resized.

Current compartment count: 3

Center compartment outer width: 50 mm

Divider height above the floor: 23 mm

Compartment floor thickness: 3.2 mm

Lift-off lid single-side clearance: 0.3 mm

Default solid volume: About 170 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
Parts	Outer size	File formats
Bat wing compartment body	210 × 111.3 × 34 mm	STL · STEP
Sculpted bat lid	210 × 111.3 × 15.5 mm	STL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size

Overall length including wings: 180–245 mm

Interior layout

Internal compartment count: 1–3
Center compartment outer width: 38–65 mm
Divider height above the floor: 16–32 mm

Functional configuration

Lift-off lid single-side clearance: 0.25–0.6 mm
Lid locating skirt depth: 3–5.5 mm

Construction details

Total inner wall thickness: 2.8–4.4 mm
Compartment floor thickness: 2.6–4.5 mm
Divider thickness: 1.8–3 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

Adjust size

Preview

Adjusting and 3D preview are free.

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

Two printed parts: a compartment body and a lid with all wing veins, ears, eye and belly details. No purchased hardware.
Lower the lid vertically. The locating skirt and cavity walls are generated from the current wall thickness and per-side clearance; this is not a latch or a sealed closure.
Print the body with its base down. Orient and support the lid according to slicer results; inspect the toolpaths at wing tips and fine relief details.
For hair clips, paper clips, earrings and other small items. Pointed outer areas are not fully usable storage space; check the narrowest opening before inserting items.
The complete shape scales by total wingspan and retains the original black, purple and orange palette. STL files contain no colors. Slicing, physical assembly and children's toy safety have not been validated.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
