boxesmodel

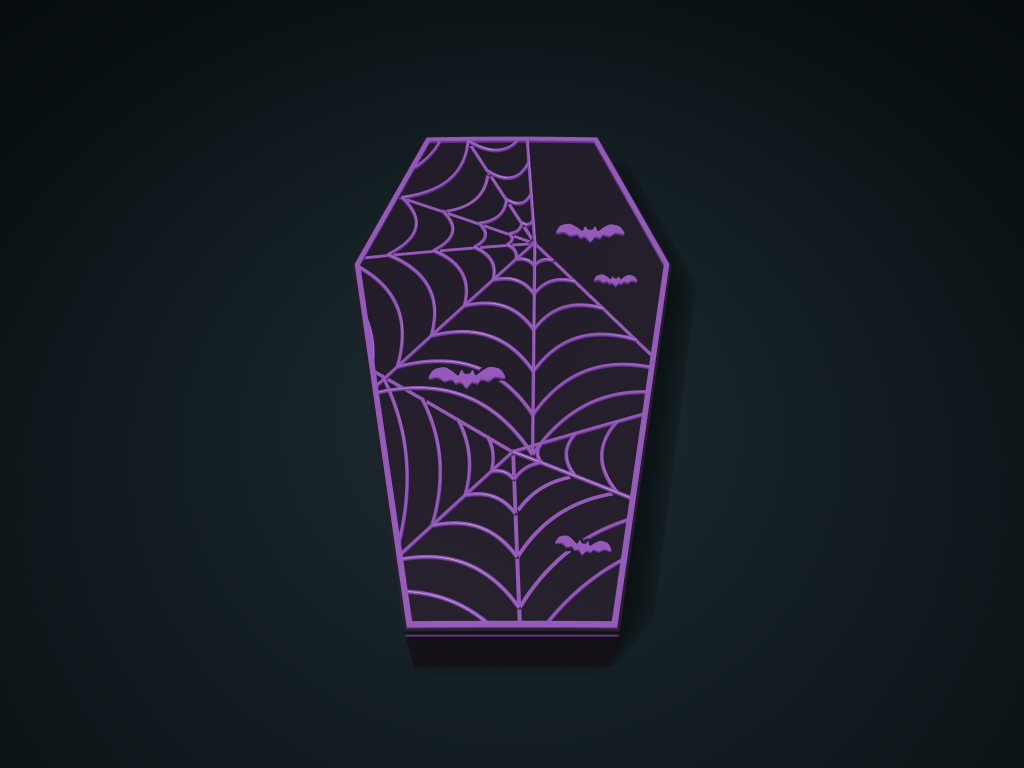

Curved Spiderweb Coffin Jewelry Box model preview, default size 125.2 × 210 × 45.5 mm, 2 parts
2 partsSTL + STEPMillimetersVersion 1.0.0
01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Preserves the supplied sloping coffin sides, curved top, two spiderwebs, four bats and purple border. Hidden relief roots are deepened while the exterior curves remain; the cavity and lid skirt are recalculated with the parameters.

Current compartment count
5
Divider height above the floor
32.4 mm
Compartment floor thickness
3.4 mm
Lift-off lid single-side clearance
0.3 mm
Usable interior space
Sloping sides and tapered ends are not rectangular usable space; check insertion and removal against the largest item envelope.
Default solid volume
About 258 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
PartsOuter sizeFile formats
Coffin-shaped compartment body125.2 × 210 × 39.6 mmSTL · STEP
Curved spiderweb and bat lid125.2 × 210 × 8.6 mmSTL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size
Overall outer width
105–145 mm
Interior layout
Internal compartment count
1–5
Divider usable height ratio
50–100 %
Functional configuration
Lift-off lid single-side clearance
0.25–0.6 mm
Lid locating skirt depth
2.5–4 mm
Construction details
Cavity side wall thickness
2.8–4.2 mm
Compartment floor thickness
2.8–4.5 mm
Divider thickness
2.4–3.8 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

01

Adjust size

Sign in to open this model in the studio.

02

Preview

Adjusting and 3D preview are free.

03

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

  1. Two printed parts: the compartment body and a curved lid retaining all spiderweb, bat and border relief. No purchased hardware.
  2. The overall width scales the complete shape in its original proportions. Inner walls, floor thickness, dividers and lid skirt are regenerated independently in millimeters.
  3. Lift the lid vertically. Per-side clearance coordinates the locating skirt and cavity fit; this is not a latch or sealed closure.
  4. For earrings, rings, hair clips and desktop items. Check insertion and removal against the actual item envelope in the tapered compartments.
  5. Place the box base down. Set supports for the curved lid and fine webs according to slicer results, then make a test print.
  6. The preview retains the dark gray body, purple border and relief. STL files contain no colors.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
