01 / SPECIFICATIONS
Specifications
See the default structure and usable space.

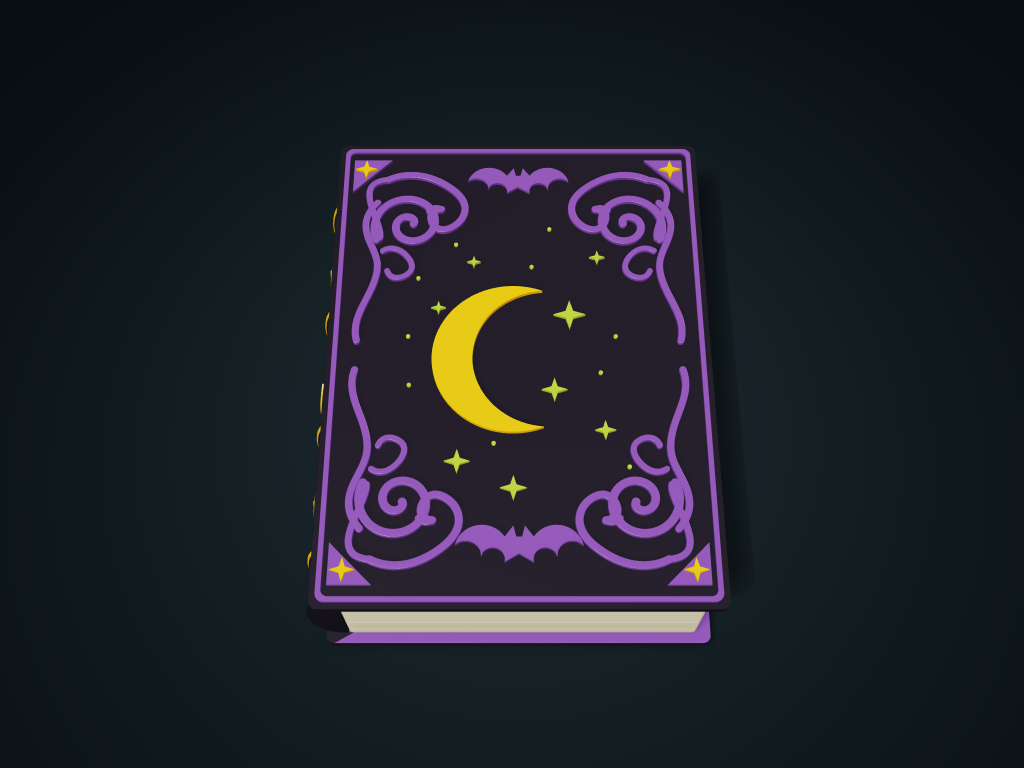

Preserves the supplied corner scrollwork, moon, stars, bats, curved spine and page lines. Hidden relief roots are rejoined, while the internal compartments and lid skirt are generated from the same parameters to retain the complete book shape.
- Cavity opening width × length
- 123.4 × 176.4 mm
- Current compartment count
- 3
- Divider height above the floor
- 38.1 mm
- Lift-off lid single-side clearance
- 0.3 mm
- Usable interior space
- Rounded corners and dividers occupy space; check insertion and removal against the largest item envelope.
- Default solid volume
- About 309 cm³ (check in your slicer) Estimate print cost
Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.
02 / MODEL FILES
Files and dimensions
The default download includes all matching parts.
| Parts | Outer size | File formats |
|---|---|---|
| Book-shaped compartment body | 147 × 190 × 46 mm | STL · STEP |
| Complete crescent and scrollwork cover | 142 × 190 × 10.4 mm | STL · STEP |
The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.
03 / ADJUSTMENTS
Adjustable options
Make the same model fit your space.
Outer size
- Book overall length
- 160–240 mm
Interior layout
- Internal compartment count
- 1–4
- Divider usable height ratio
- 40–100 %
- Center share in three-bay layout
- 25–50 %
Functional configuration
- Lift-off lid single-side clearance
- 0.25–0.6 mm
- Lid locating skirt depth
- 3–5 mm
Construction details
- Nominal page-block side wall thickness
- 2.8–4.2 mm
- Compartment floor thickness
- 3–5 mm
- Divider thickness
- 2.4–4 mm
Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.
Preview
Adjusting and 3D preview are free.
Check export options
Confirm the files and available download options on the current page.
Adjust this model
Size and structure parameters update all matching parts of this model together.
04 / PRINT & ASSEMBLY
Printing and assembly
Check slicing and fit after downloading.
- Two printed parts: a book-shaped body with its curved spine and page lines, and a lift-off cover with all scrollwork, moon, star and bat details. No purchased hardware.
- The overall book length scales the complete shape proportionally; wall thickness, floor thickness, compartment layout and lid skirt are regenerated independently.
- Lift the cover vertically. Its locating skirt follows the current cavity and per-side clearance; this is not a hinged cover or a latch.
- One to four compartments organize earrings, hair clips, notes and individually wrapped candy. The center share is adjustable in the three-compartment layout.
- Place the box base down. Choose the orientation and supports for the fine book-cover relief and locating rim according to slicer results.
- The preview retains the dark purple book, purple scrollwork, gold moon, green stars and cream page edges. Downloaded STL files contain no colors.
Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
