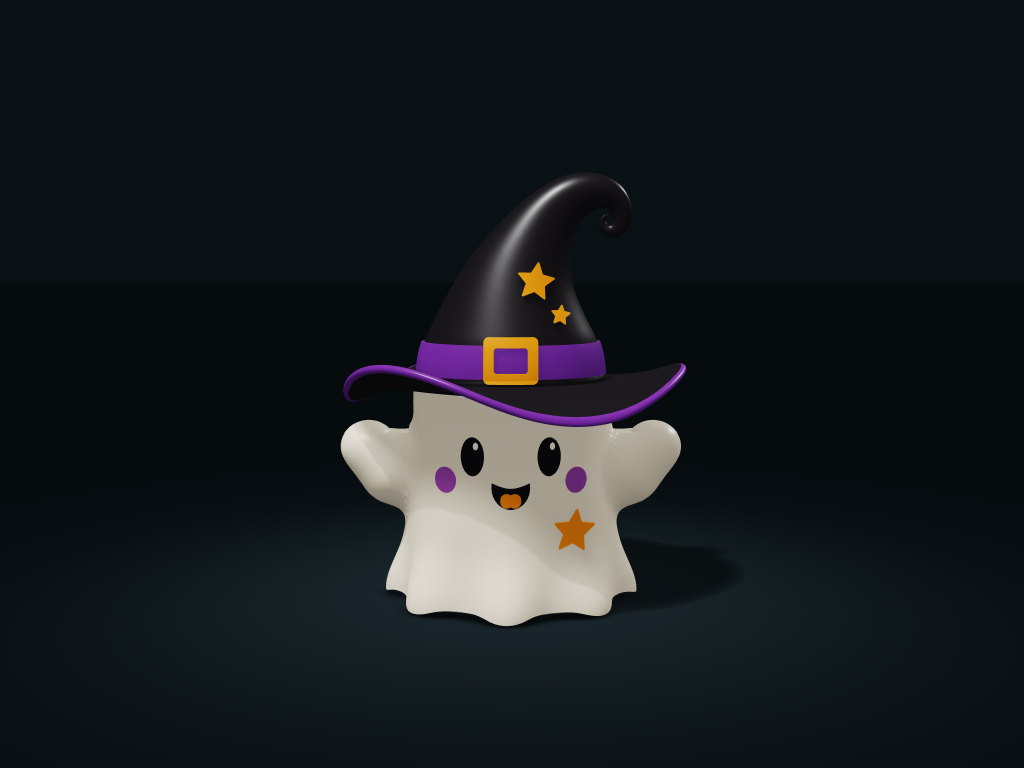

Wizard Hat Ghost Storage Box model preview, default size 173.2 × 170.4 × 210.9 mm, 2 parts
2 partsSTL + STEPMillimetersVersion 1.0.0
01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Based on the supplied wizard ghost: preserves the asymmetric drape, hands, eyes, mouth, hatband and stars. Hidden joints overlap; the circular cavity, curved dividers and hat locating skirt are rebuilt from the same parameter set.

Internal opening diameter
92.0 mm
Current compartment count
3
Divider height above the floor
94.6 mm
Lift-off lid single-side clearance
0.3 mm
Internal floor height relative to the original datum
5.0 mm
Default solid volume
About 449 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
PartsOuter sizeFile formats
Draped ghost compartment body172 × 128.2 × 104 mmSTL · STEP
Curved wizard hat lid170 × 170.4 × 116.9 mmSTL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size
Overall width including hands and hat brim
155–220 mm
Interior layout
Internal compartment count
1–4
Divider usable height ratio
40–100 %
Functional configuration
Lift-off lid single-side clearance
0.25–0.6 mm
Lid locating skirt depth
3–5 mm
Construction details
Inward cavity thickening
0–1.2 mm
Additional floor thickness
0–4 mm
Divider thickness
2.4–4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

01

Adjust size

Sign in to open this model in the studio.

02

Preview

Adjusting and 3D preview are free.

03

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

  1. Two printable parts: the ghost body with its complete face, hands and folds, and the wizard hat lid with its band and stars. No purchased hardware is needed.
  2. Overall width scales the complete sculpture proportionally; inward walls, floor, curved dividers and hat locating skirt are generated from the same parameters.
  3. Lift the hat vertically. Its locating skirt follows the cavity radius and side clearance; this is not a snap-fit or sealed joint.
  4. For individually wrapped sweets, hair accessories and small desk items. Check access through the circular opening; food-contact, waterproofing and toy safety have not been validated.
  5. The sculpt includes overhangs at the hem, hands and hat brim. Confirm print orientation and supports in the slicer.
  6. Preview retains the ivory ghost, black and purple hat, orange stars and original facial colors. STL downloads are uncolored.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
