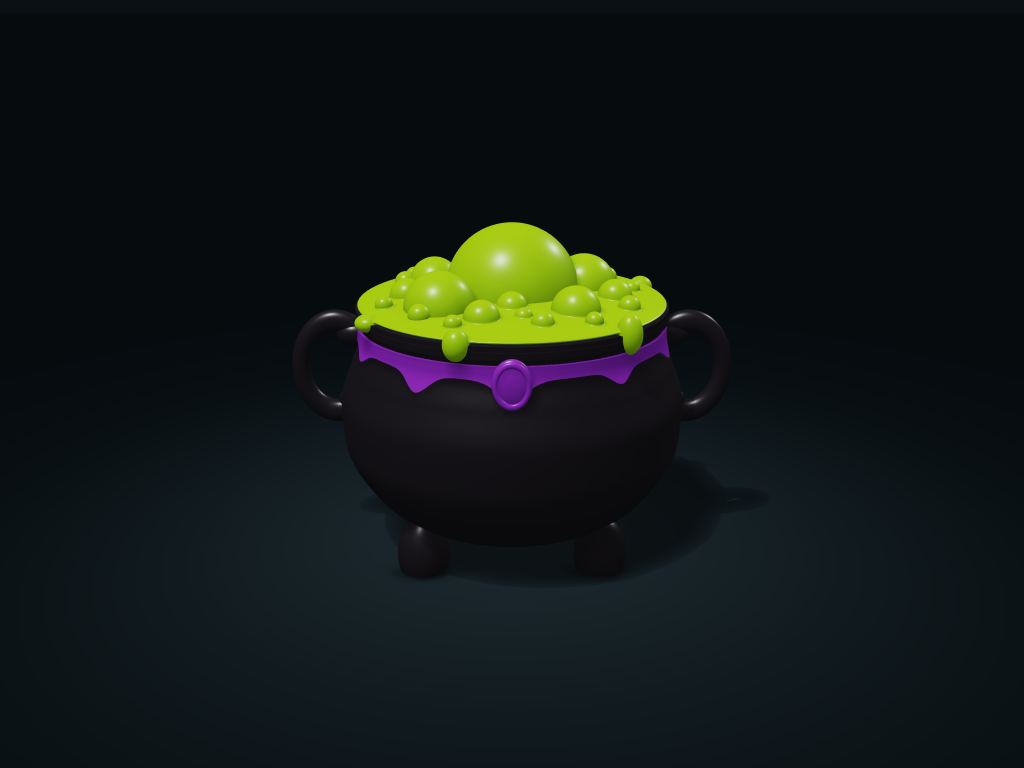

Bubbling Cauldron Storage Box model preview, default size 206.4 × 160 × 150.2 mm, 2 parts
2 partsSTL + STEPMillimetersVersion 1.0.0
01 / SPECIFICATIONS

Specifications

See the default structure and usable space.

Preserves the supplied rounded cauldron, two handles, four feet, purple drip collar and every bubble detail. The exterior scales proportionally while the inner walls, floor, dividers and lid skirt are recalculated together.

Cauldron opening diameter
133.6 mm
Current compartment count
3
Divider height above the floor
94.3 mm
Compartment floor thickness
4 mm
Lift-off lid single-side clearance
0.3 mm
Usable interior space
The belly is wider than the opening. Check insertion and removal against the opening diameter.
Default solid volume
About 485 cm³ (check in your slicer) Estimate print cost

Listed part dimensions are outer bounds; usable interior space is given in this model's specifications.

02 / MODEL FILES

Files and dimensions

The default download includes all matching parts.

Default model parts and outer dimensions
PartsOuter sizeFile formats
Cauldron body with two handles and four feet206.4 × 160 × 112 mmSTL · STEP
Complete bubble and drip lift-off lid144 × 148.7 × 44.8 mmSTL · STEP

The ZIP contains the complete STL and STEP files, a size list and notes. Version 1.0.0 Use the complete set of files of the same version and size for matching parts. Preview colors are for reference only; STL files carry no color.

03 / ADJUSTMENTS

Adjustable options

Make the same model fit your space.

Outer size
Overall width including handles
170–245 mm
Interior layout
Internal compartment count
1–4
Divider usable height ratio
40–100 %
Functional configuration
Lift-off lid single-side clearance
0.25–0.6 mm
Lid locating skirt depth
2.5–4.5 mm
Construction details
Nominal cauldron wall thickness
2.8–4.2 mm
Compartment floor thickness
3–5 mm
Divider thickness
2.4–4 mm

Ranges are set by this model's structure; each combination must pass the studio's structure checks; matching parts update with the parameters.

01

Adjust size

Sign in to open this model in the studio.

02

Preview

Adjusting and 3D preview are free.

03

Check export options

Confirm the files and available download options on the current page.

Adjust this model

Size and structure parameters update all matching parts of this model together.

04 / PRINT & ASSEMBLY

Printing and assembly

Check slicing and fit after downloading.

  1. Two printed parts: the cauldron body with two handles, four feet and a drip collar, and the complete lift-off bubble lid. No purchased hardware.
  2. The exterior scales by overall width, retaining the original belly, handle, foot and bubble proportions. Internal wall thickness, floor thickness and dividers are generated independently in millimeters.
  3. Lower the lid vertically. The opening diameter and locating skirt change together with size, wall thickness and per-side clearance; this is not a latch or a sealed lid.
  4. Arrange the cauldron and bubble lid separately on the build plate. Set supports for the feet, handles, drips and lid recess according to slicer results; print a fit sample first.
  5. For individually wrapped sweets, hair clips or small desk items. Check food-contact suitability, watertightness, carrying strength and toy safety before any such use.
  6. Retains the dark gray body, purple collar and green bubbles. STL files contain no colors. Slicing and physical assembly have not been performed.

Import into your slicer in millimeters and check build volume, orientation and supports for each part. Test-print lids, drawers and connectors first, and print the full set once the fit is confirmed.
